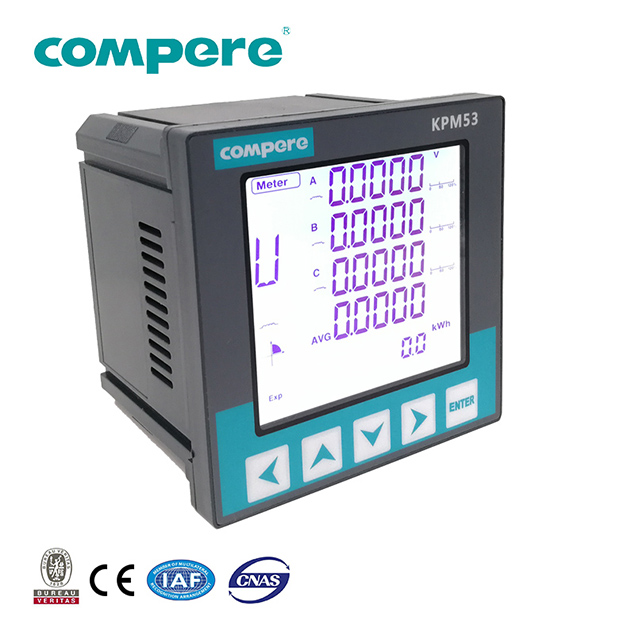

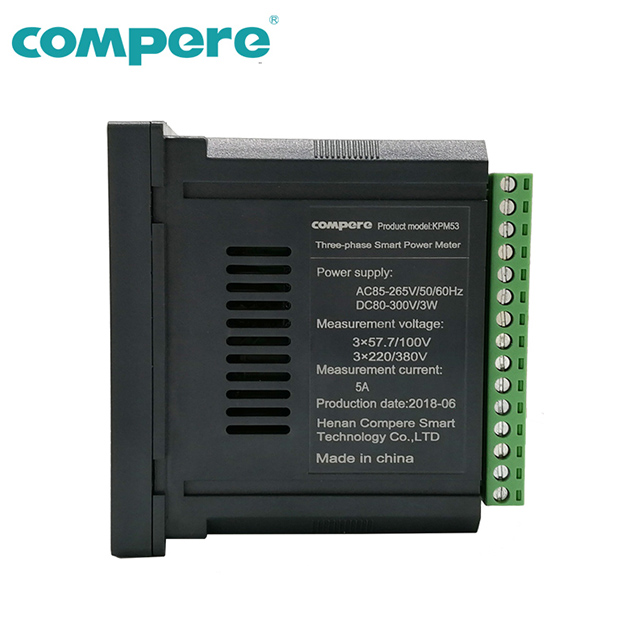

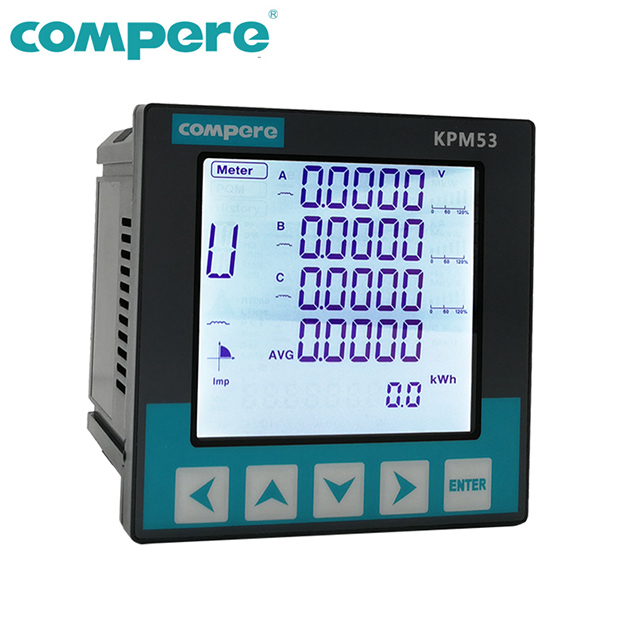

        KPM53 3-phase power meter





                            KPM53 series of three-phase smart power meter with accurate measurement of power parameters, the instrument uses advanced ARM processor and digital signal processing technology designed from the set of three-phase electrical parameters.












                   Overview
                    Function
                    Specifications
                    Wiring Diagram
                    Download






                            KPM53 series of three-phase smart power meter with accurate measurement of power parameters, the instrument uses advanced ARM processor and digital signal processing technology designed from the set of three-phase electrical parameters measurement, display, power statistics, power quality analysis, digital input / Output and network communications in one; with high precision, strong isolation, stable performance, anti-interference ability and a little; the instrument also has a very strong expansion capabilities, such as monitoring of external switching action, 4-20mA analog output, but also The network management of the instrument can be realized through RS-485 / Modbus communication protocol.



Application occasion



□ Alternative analog pointer table.

□ Display and control of electrical parameters in mid-low voltage distribution System.

□ Collect energy consumption data that cost center analysis needs.

□ Green building or DC.

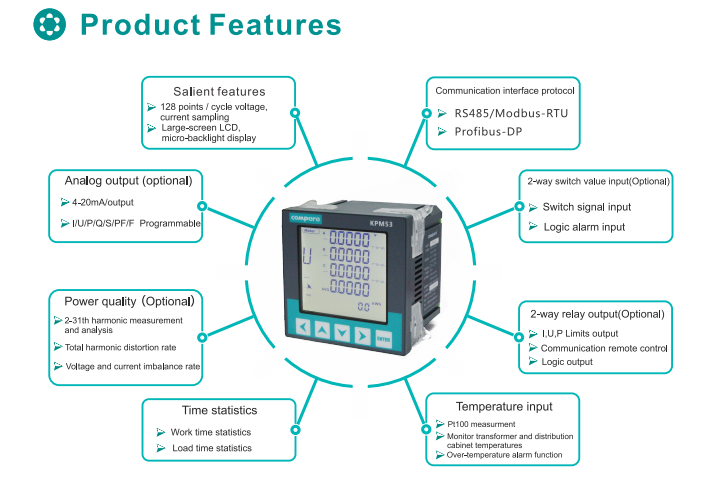

                        Function features



□ Measuring three-phase AC voltage, current, voltage / current unbalance rate, four-quadrant power, active / reactive power, power factor, frequency, maximum / minimum.

□ Voltage to current ratio programmable.

□ Working hours, load time statistics.

□ Support up to 31th harmonic calculation.

□ 1 –way RS485 communication interface, Modbus protocol.

□ Can be extended 2-way passive switch value input.

□ Can be extended 2-way relay output.

□ Can be extended 1-way 4-20mA analog output.

□ 1 road passive optical coupler collector active pulse output.

□ Can be extended 1-way PT100 temperature input.

□ Excellent temperature characteristics and work stability.

□ FSTN large screen LCD, bright LED backlight uniform display, in the bright light and large viewing angle environment to obtain a good visual effect.




















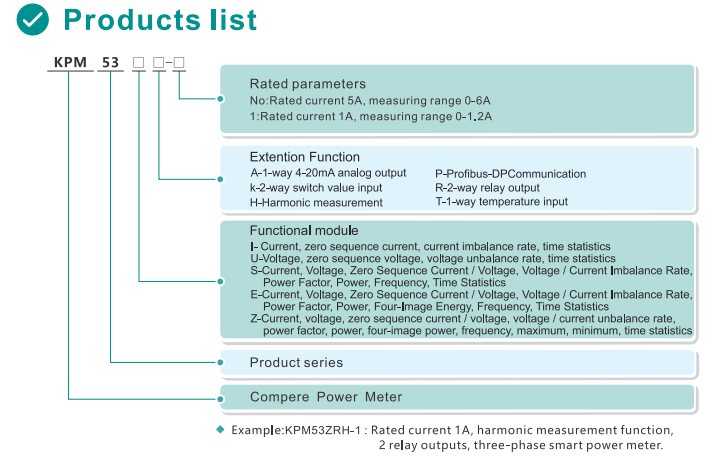

				KPM53Multifunction meter-Technical parameters





				 Working power source

				Operating Voltage

				AC85~265V/DC80~300V







				Rated power

				＜3VA





				Input voltage

				Rated voltage

				220V







				Sill value

				5V







				Overload capacity

				1.2 times rated voltage allowed, continuous work; 2 times the rated voltage allowed 1second







				Power consumption

				＜0.5VA/phase（rated）







				Measurement range

				5~260VAC，







				Frequency range

				45~65Hz





				Input current

				Rated current

				Default 5A，Input range 1-6A；Optional 1A，Input range 1-1.2A







				Sill value

				5A Configuration，5mA；1A Configuration，0.8mA







				Overload capacity

				1.2 times rated current allowed, continuous work; 20 times the rated current allowed 1 second







				Power consumption

				＜0.75VA/phase（Rated current 5A）；＜0.25VA/phase（Rated current 1A）







				Frequency range

				45~65Hz





				Input/Output

				Switch value input

				2-way passive main line contact DI input, internal supply DC24V power source







				Relay output

				2-way DO output，Contact capacity 250VAC/5A，30VDC/5A







				Analog output

				Output range 4~20mA，overload allows 1.2times







				Temperature input

				Measure range 0℃~100℃





				Power quality monitor

				Harmonic measurement

				Voltage/current2~31th harmonic distortion rate、total harmonic distortion rate.







				Harmonic distortion rate

				Phase voltage, line voltage







				Imbalance rate

				Voltage. current





				Measurement accuracy

				Voltage

				±0.2%(0.01V)







				Current

				±0.2%(0.01A)







				Active power

				±0.5%(0.1W)







				Reactive power

				±2.0%(0.1kvar)







				Active energy

				±0.5%(0.1kWh)







				Reactive energy

				±2.0%(0.1kvarh)







				Power factor

				±0.5%(0.001)







				Frequency

				±0.02Hz(0.01Hz)







				Temperature

				±1℃（1℃）





				Communication

				Communication interface

				RS485，Photoelectric isolation interface







				Communication protocol

				Modbus-RTU，1200~38400bps





				Electrical insulatio

				Power frequency withstand voltage

				AC2kV/min~1mA Input-output-power source （GB/T 13729）







				Insulation resistance

				＞50MΩ                            （GB/T 13729）







				Impact voltage

				5kV（Peak），1.2/50us    （GB/T 13729）





				Working environment

				Operating temperature

				-25℃ ~ +70℃







				Relative humidity

				5%~95% No condensation







				Storage temperature

				-30℃ ~ +75℃







				 Altitude

				No more than 4000m





				Electromagnetic Compatibility

				Surge (impact) immunity

				GB/T 17626.5-2008，Level4







				Electrical fast burst immunity

				GB/T 17626.4-2008，Level4







				Electrostatic discharge immunity

				GB/T 17626.2-2006，Level4







				Power frequency magnetic field immunity

				GB/T 17626.8-2006，Level4


















Explanation

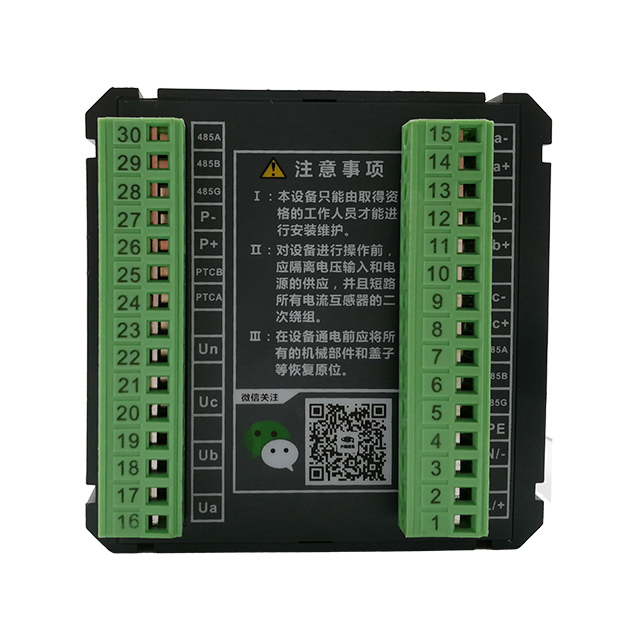

1. The wiring diagram is suitable for high voltage three-phase three-wire system, low voltage three-phase four-wire system, regard to other system wiring please refer to KPM53 instruction manual.

2. Analog output AO- and switch input common COM share one terminal.

3. Terminal that without function description is invalid.

4. The function of dotted lines is optional.
